Weight per surface unit

kg/m²

≈ 1.67

Residual stress acc. to DIN 52 913

16 h, 300 °C

N/mm²

> 45

Swelling acc. to ASTM F 146:

in IRM 903 Oil (replaces ASTM Oil No. 3)
5 h, 150 °C

increase in thickness

%

< 5

in ASTM Fuel B
5 h, room temp.

increase in thickness

%

< 5

in water / antifreeze (50:50)
5 h, 100 °C

increase in thickness

%

< 5

Short-term peak temperature

°C

240

Operating temperature

°C

-40 up to +200

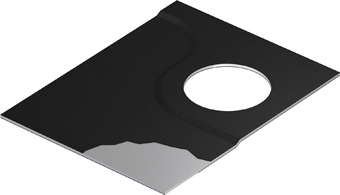

Gaskets

according to a drawing, dimensions supplied, or other arrangement,
max. width 500 mm..

Nominal thicknesses and tolerances (mm)

Other options on request.
