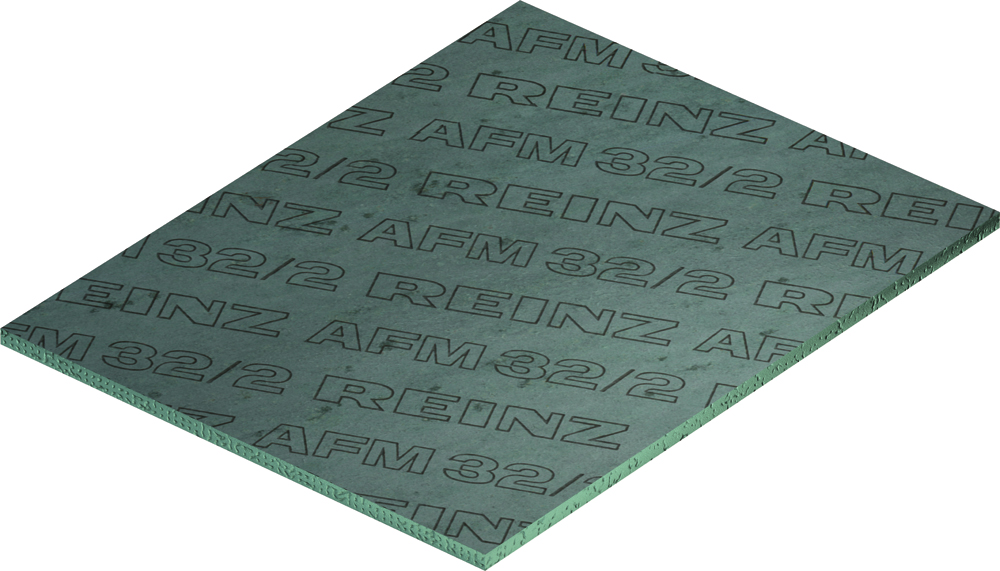

产品名称：AFM 32/2
产品材质：无石棉垫片，非石棉
产品应用：
产品认证：
技术参数：
点击查看大图片
Material
AFM 32/2 is an asbestos-free gasket material. It is composed of aramide fibres and other asbestos substitutes which are resistant to high temperatures. These substitutes are processed with high-grade elastomers under elevated pressure and temperature.
Properties
AFM 32/2 exhibits high mechanical and thermal stability as well as high tensile strength. It is also conformable and is particularly suitable for sealing off oils and other fluid substances.
Application
- for sealing joints in internal combustion engines which are subject to high mechanical stress (e.g. intake manifolds,oil pans)
- for transmissions, compressors, pipelines and apparatus
- for sealing off transmission, hydraulic, refrigerating and motor oils
- for sealing off fuels, mixtures of water and antifreeze and corrosion inhibitors
- for sealing off Freons, alkaline solutions and solvents
Surfaces
The standard version of AFM 32/2 has a non-stick top and bottom layer with a high coefficient of friction. This facilitates dismantling. Additional surface treatment is unnecessary in most cases.
|
Technical Data
(Nominal thickness
2.00 mm) |
Density |
g/cm³ |
1.6 - 1.8 |
|
Ignition loss acc. to DIN 52 911 |
% |
< 40 |
|
Tensile strength |
|
acc. to ASTM F 152 |
across grain |
N/mm² |
> 15 |
|
acc. to DIN 52 910 |
across grain |
N/mm² |
> 12 |
|
Residual stress acc. to DIN 52 913 |
|
16 h, 300 °C |
N/mm² |
25 |
|
16 h, 175 °C |
N/mm² |
36 |
|
Compressibility and recovery
acc. to ASTM F 36, procedure J |
|
compressibility |
% |
7 - 12 |
|
recovery |
% |
> 50 |
|
Sealability against nitrogen |
|
acc. to DIN 3535, part 6 FA |
mg/(s*m) |
< 0.1 |
|
Swelling acc. to ASTM F 146 |
|
in IRM 903 Oil (replaces ASTM Oil No. 3)
5 h, 150 °C |
|
increase in thickness |
% |
< 8 |
|
increase in weight |
% |
< 12 |
|
in ASTM Fuel B
5 h, RT |
|
increase in thickness |
% |
< 7 |
|
increase in weight |
% |
< 10 |
|
in water / antifreeze (50:50)
5 h, 100 °C |
|
increase in thickness |
% |
< 5 |
|
increase in weight |
% |
< 15 |
|
Short-term peak temperature |
°C |
400 |
|
Maximum continuous temperature |
°C |
250 |
|
Maximum operating pressure |
bar |
150 |
