描述和应用

该套件中包含的 TEADIT ELECTRON™ GS 垫片由压缩纤维片制成，由 NBR 粘合剂、芳纶纤维和填料组成。其结构使其能够满足工业管道的电气隔离和密封性要求。该产品专为低需求应用而开发，例如水（饮用水、海水或残水）管道以及化学侵蚀程度较低的液态碳氢化合物。该垫片比此类工艺中通常推荐的酚醛树脂垫片具有更好的性能。

Technical Data:

Flanges (recommended):  RF & FF in classes ANSI 150 to 300#

Dielectric strength 3 kV (60 Hz VCA per 1 minute)

Electrical resistance:  499 GΩ  (1000 VDC)

Temperature: 150 °C (302 °F)

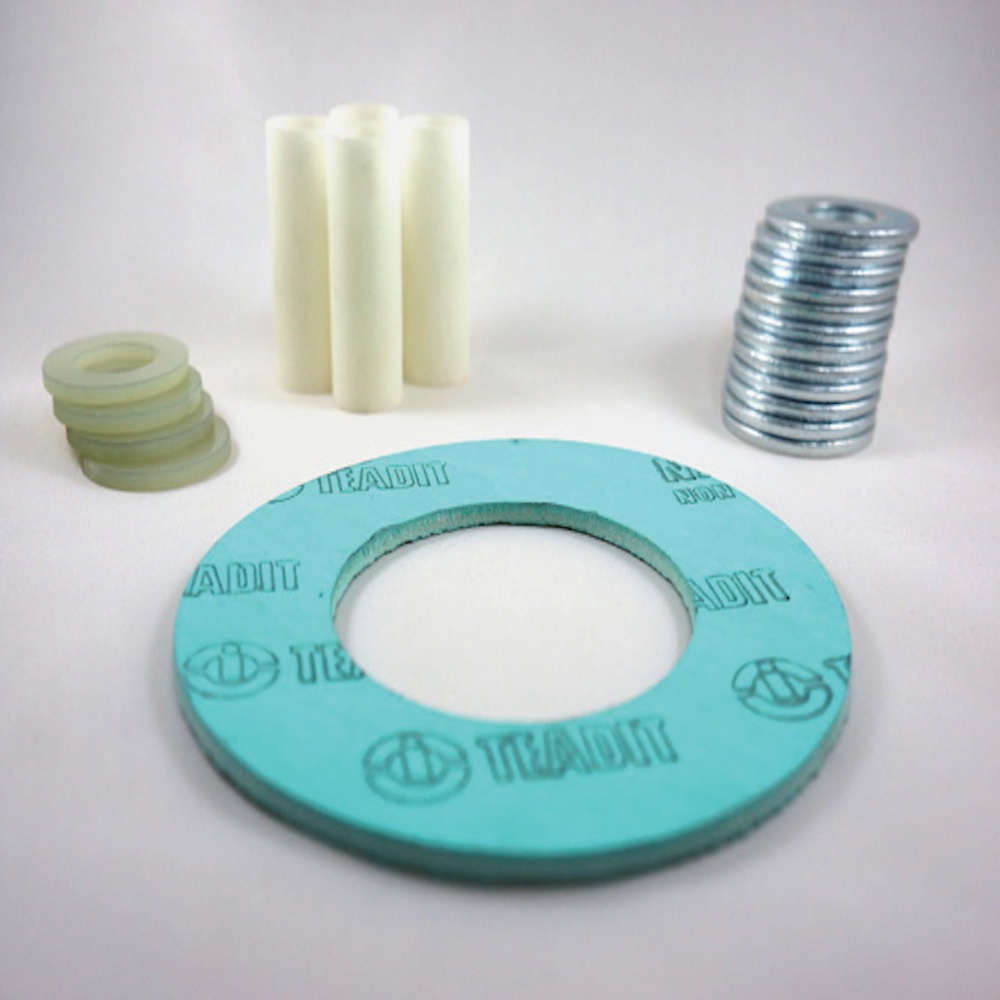

Kit consists of:  ELECTRON™ GS sealing gasket; and, per bolt, 2 galvanized carbon steel washers; 1 insulating washer of epoxy laminated fiberglass (G10); and phenolic insulating sleeves
