Grafilit®SL是一种具有优良的强度和抗蠕变的垫圈材料，化学稳定性和高密闭率。

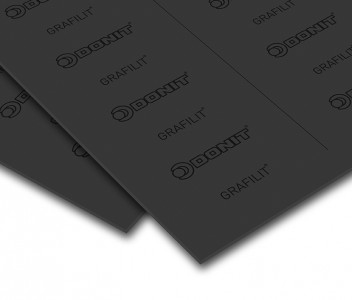

GRAFILIT® SL is a gasket material with excellent strength and creep resistance, chemical stability and a high tightness rate. Because of a stainless-steel insertion it offers easier handling and installation compared to the non-reinforced.
PROPERTIES
Suitable for a wide range of applications especially for higher operating pressures such as in gas supply, compressors, pumps and valves.
CERTIFICATES
- BAM (Oxygen)
- DIN-DVGW DIN 3535-6
- DVGW KTW
- DVGW VP 401
APPLICATIONS
- Chemical industry
- Petrochemical industry
DIMENSIONS OF STANDARD SHEET
Sheet size (mm):
1000 x 1000 | 1500 x 1500
Thickness (mm):
1.0 | 1.5 | 2.0 | 3.0
Other dimensions and thicknesses are available on request.
